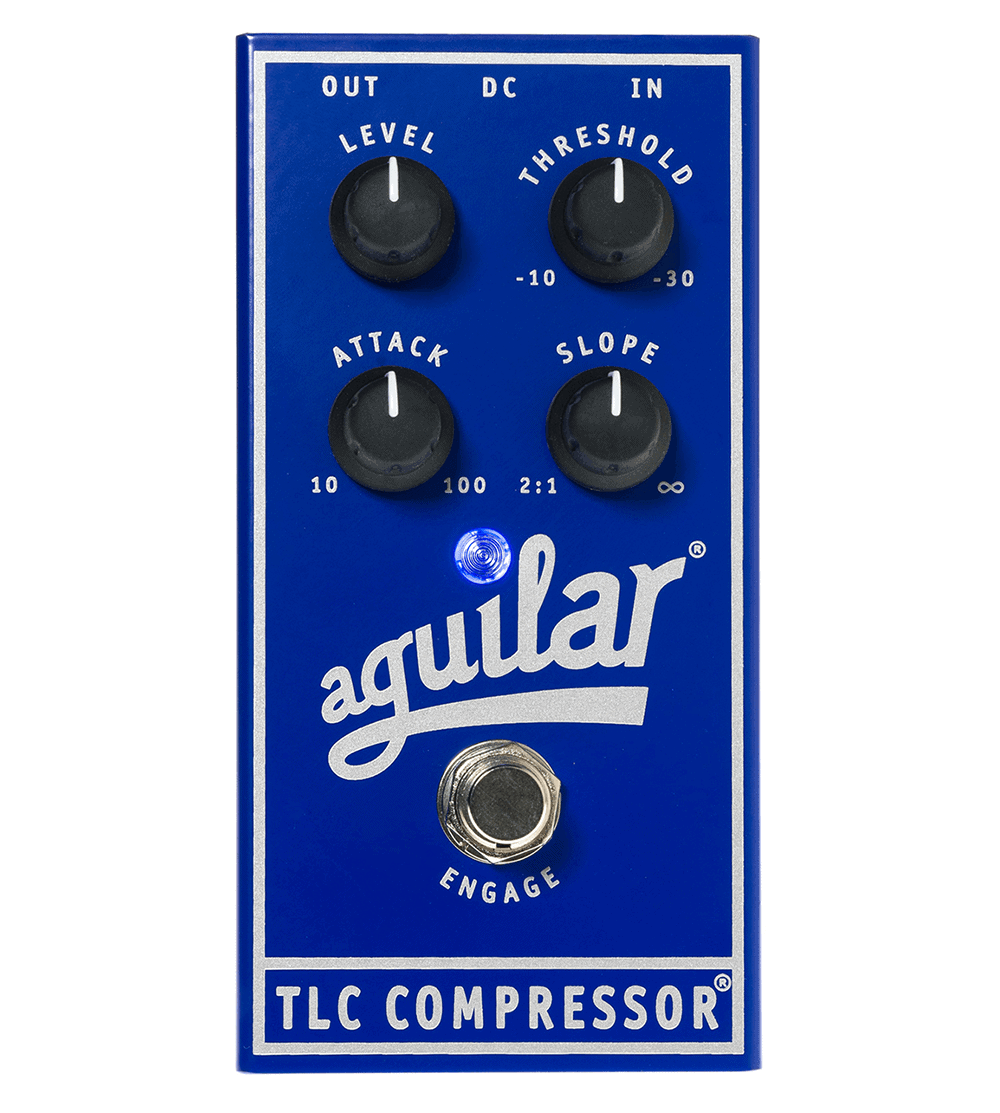

Aguilar TLC Compressor

$ 198.87excl. VAT

In stock

TLC Compressor

Aguilar’s TLC Compressor is an innovative analog Compressor that is designed to give musicians the ability to control their dynamics in a flexible and musical way, making it an invaluable musical tool for both recording and live use. Our proprietary Trans Linear Control (TLC) circuit enables us to achieve unprecedented levels of performance in a small package.

The TLC Compressor features a four-knob layout to provide a full set of important features. Using a wide range of attack times and variable threshold and slope levels, you’ll be able to dial in just the right sound. Aguilar’s TLC Compressor gives you a range of control usually found only in expensive studio compressors.

Specs

Knobs

Level
Controls the volume of the output. Used for setting loudness and make-up gain.
Threshold
Sets the input level at which compression begins. Turning the knob clockwise causes compression to begin at lower input levels.
Attack
Sets the amount of time before compression begins after a note is played. Turning the knob clockwise causes the attack time to become longer, allowing the leading edge of the note to be heard without compression.
Slope
Controls the compression ratio, or slope. As you turn the knob clockwise the dynamic range is compressed more.
Engage
Toggles between on and off. The blue LED indicates that the effect is on.

Power

Battery
9V
External DC Power
External DC Power: 9-10 VDC center terminal negative Current consumption 6mA

Outputs

Input
1/4"
DC Input
This is a standard 2.1mm DC jack. The center terminal polarity is negative. Compatible with 9-10 VDC regulated power supplies.
Output
1/4"
