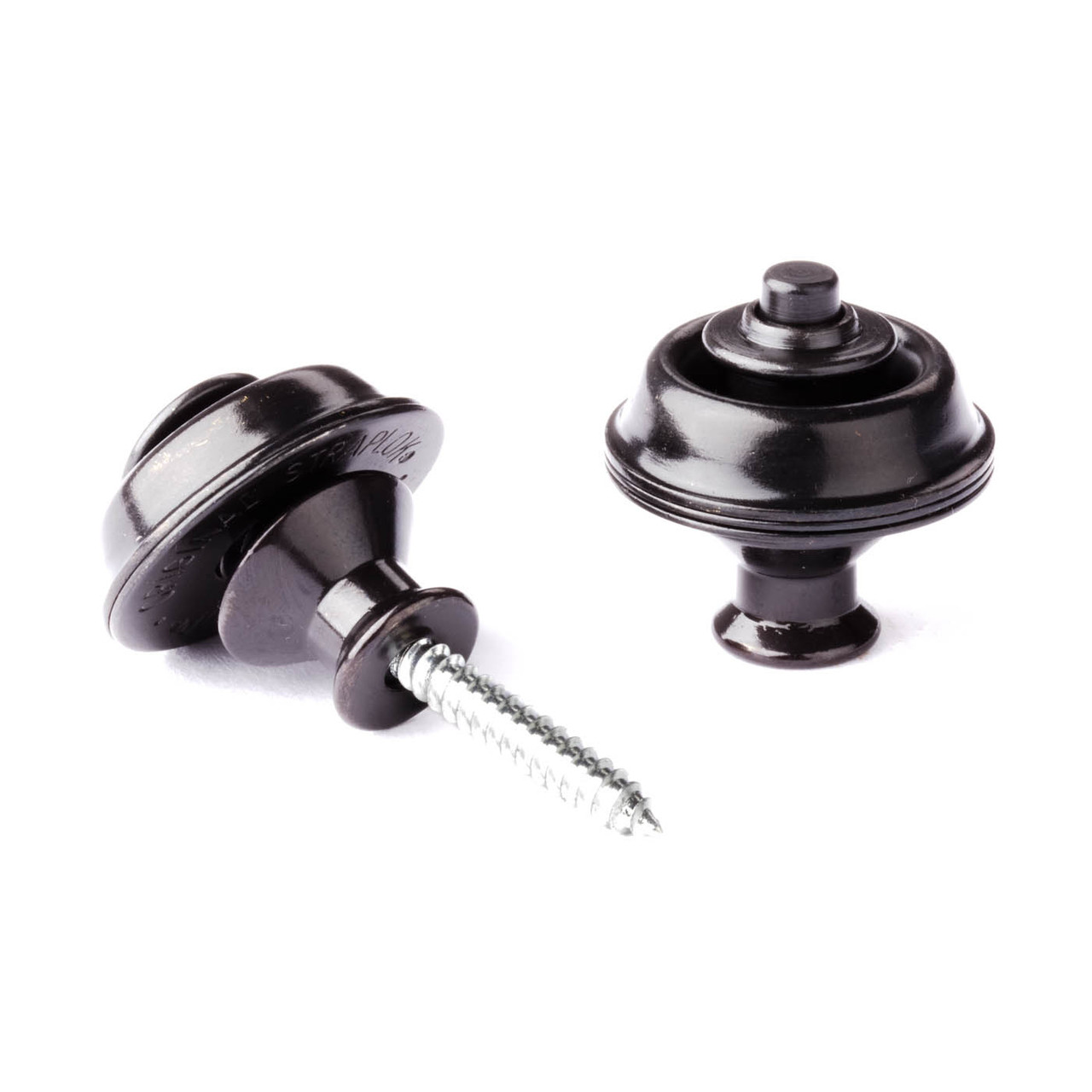

Dunlop Straplok Black Dual Design

Straplok Strap Retainer System Dual Design

INSTALLATION INSTRUCTIONS

Please follow instructions very carefully and use

all provided parts. If you do not feel comfortable

performing this installation yourself, have it done

by a reputable luthier or guitar repair technician.

Locking Pin Assembly:

1. Slip locking pin (1) through the recessed washer (2).

2. Insert locking pin (1) through strap hole (3).

3. Slip flat washer (4) over locking pin (1)

against strap (3).

4. Snap retainer clip (5) into locking pin’s

shank groove (1).

Strap Button Instructions:

1. Secure body of instrument to a flat surface such

as a table or workbench and remove existing strap

buttons.If neck is bolted on,remove it for easier

access.

2. With a 7/64ʺ bit, drill 7/8” deep into existing

strap button hole.

3. Place strap button (6) over hole. Lubricate tip

of mounting screw (7) with a small amount of wax or

bar soap and screw it into the strap button hole with a

#2 Phillips screwdriver.

4. Rotate clockwise until snug.

5. Repeat for other Straplok button.

OPERATING INSTRUCTIONS

To Lock:

1. Press locking pin plunger (1) & insert pin

assembly into strap button (6).

2. Release plunger when unit is FULLY locked.

3. Pull on strap to check for secure lock.

To Unlock:

1. Press locking pin plunger (1).

2. Remove locking pin (1) from strap button (6)

and release plunger.

Maintenance:

It is important to periodically maintain the Straplok

system. Keeping the ball bearings and the locking

pin lubricated is VERY important, as is making

sure there is nothing inside the strap button. We

recommend the following items to assist you:

1. Cotton Swabs

2. Lubricant Spray
