With its newest addition to the LYD personal reference monitor series, Dynaudio is bringing a new perspective to power and precision for producers and musicians everywhere – with unmatched accuracy at any volume level.
Dynaudio Lyd 48 Left
SOLD

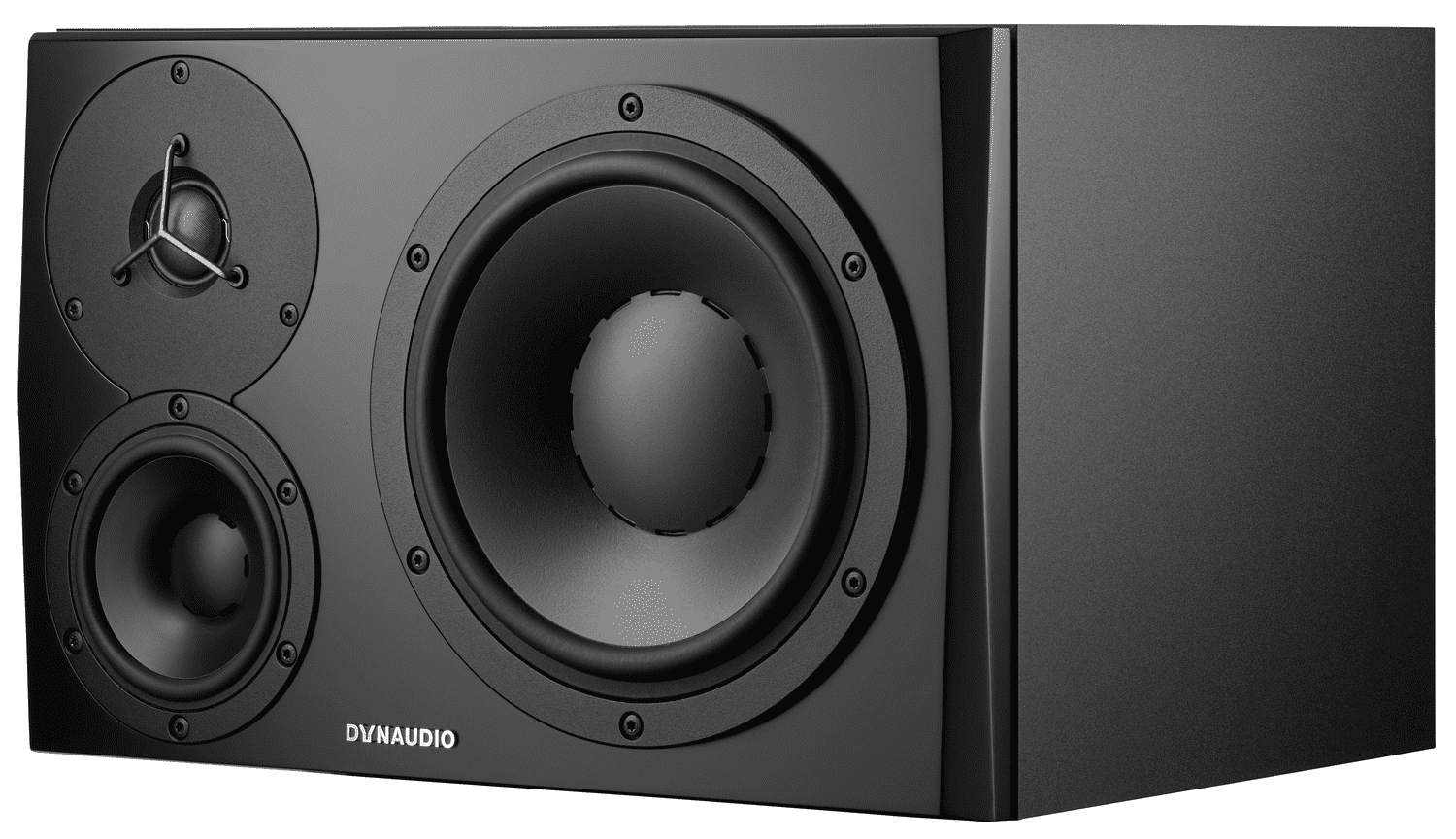

The 3-way LYD monitor
"The performance of the LYD 48 in the bass end was exemplary and I was very impressed by the level of definition and transient detail that it delivered in the mid and treble frequencies, even when the bottom end was shaking the metaphorical floorboards."
(Bob Thomas, Sound On Sound)
Specs
Speakers
- Tweeter
- 1" soft dome
- Midrange
- 4"
- Woofer
- 8"
Power
- Power (Tweeter/Midrange/Woofer)
- 50W/50W/80W
- Max SPL (1m, pair)
- 112dB
- Type
- Class D
- Power consumption standby
- <0.5W
- Power consumption max
- 100W
Inputs
- Inputs
- XLR balanced / RCA unbalanced
Performance
- Crossover Frequencies
- 460Hz / 5.5kHz
- Frequency response -6dB limits
- Bass extension +10Hz: 60Hz - 21kHz Bass extension 0Hz: 50Hz - 21kHz Bass extension -10Hz: 40Hz - 21kHz
- Free field frequency response
- 50Hz - 19kHz
- Frequency response -10dB limits
- Bass extension +10Hz: 52Hz - 24kHz Bass extension 0Hz: 42Hz - 24kHz Bass extension -10Hz: 32Hz - 24kHz

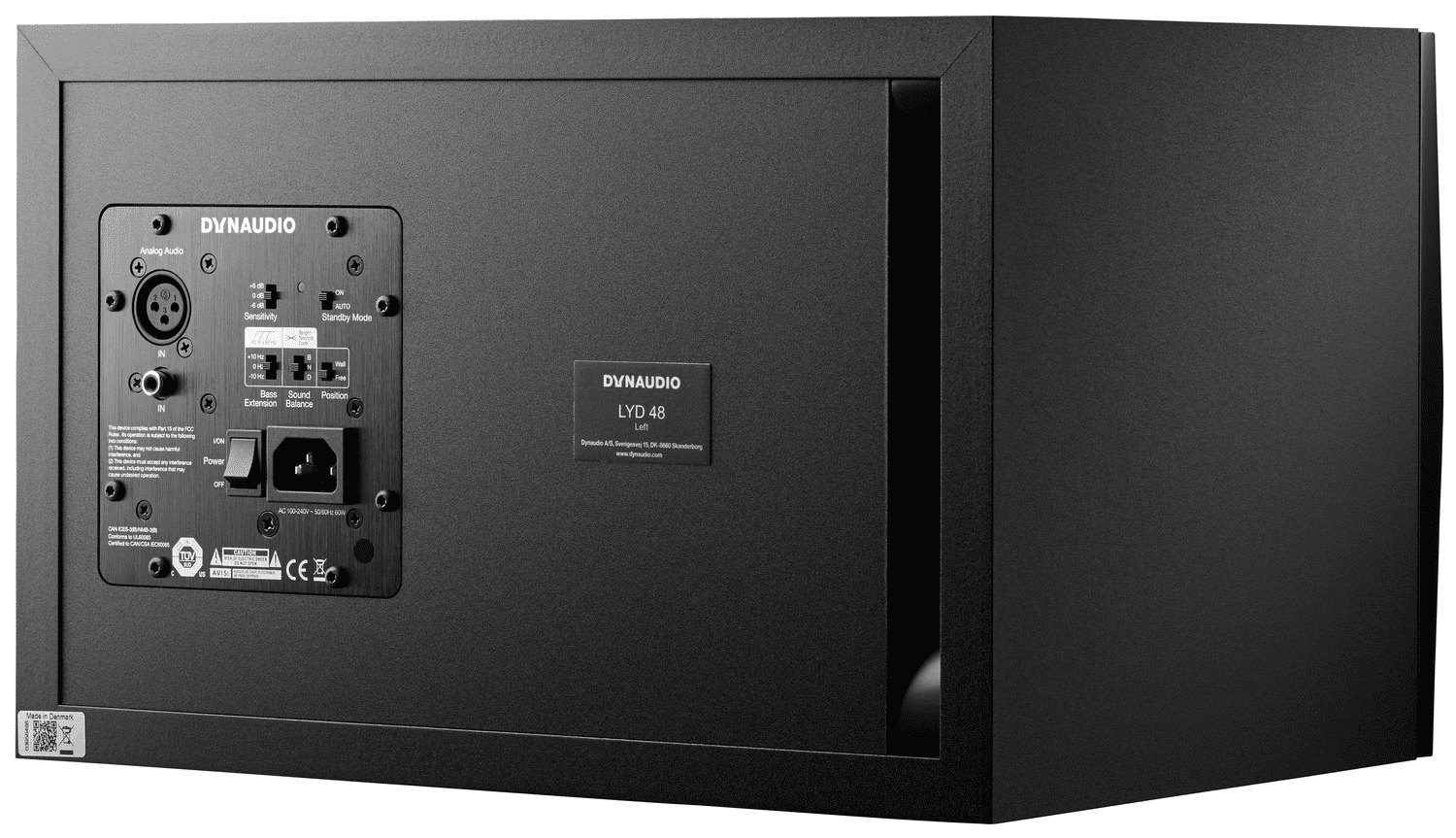

Toggle switches
- Power
- On/Off
- Standby Mode
- Turns auto-standby ON/OFF
- Sensitivity
- Changes max. input voltage
- Bass Extension
- Changes cut-off frequency of the speaker
- Sound Balance
- Switches between three tilt filter settings
- Position
- Turns boundary effect filters ON/OFF
Weight
- Weight
- 12kg
Mechanics
- Dimensions
- 369 x 234 x 328mm
