Meris Ottobit

Meris Ottobit Jr Bitcrusher

$ 330.99excl. VAT

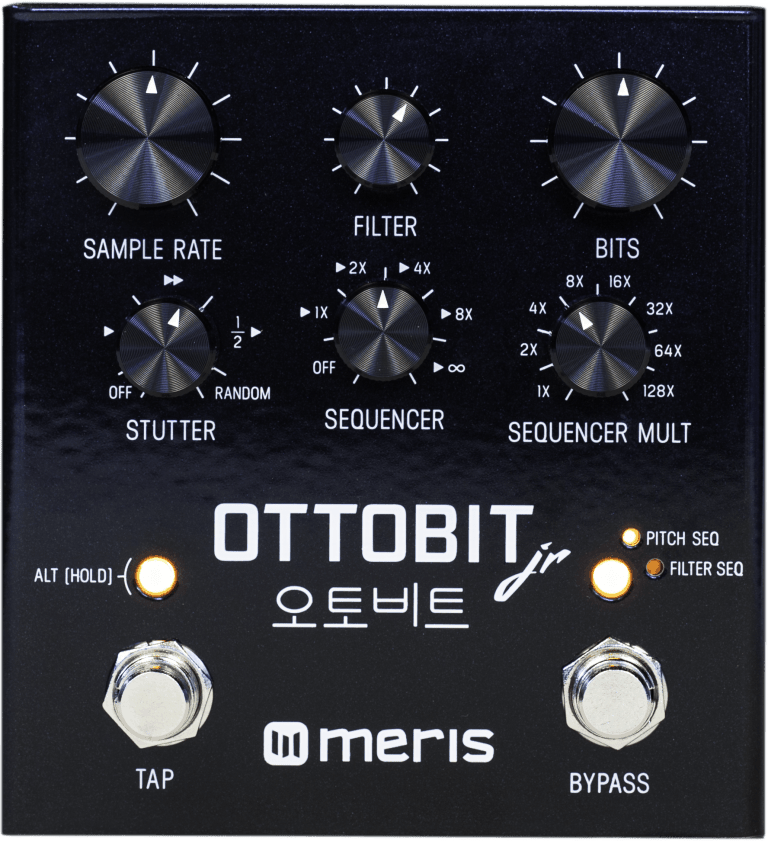

Meris Ottobit Jr Bitcrusher

From an era when visiting the arcade meant silicon-defined-sonics were burned into so many kids’ memories (big and small alike), the Meris Ottobit Jr bitcrusher is inspired by the world of vintage gaming consoles, bringing those sounds directly to your pedalboard.

So what exactly is Ottobit Jr.? Well, it’s a bitcrusher, but it would be an insult to just call it that. It’s also an ultra-musical sequencer, stutter and filter effect, but it’s not JUST that either. It’s the sum of all of these parts that make the Ottobit Jr. what it is: a maniacal side-scrolling, coin-collecting, power-glove-punching-machine with a host of earth-shattering sounds that’ll melt your face right off! Heck, the pedal is so unique and innovative that it deserves to have a verb all of its own. So plug in, press play and Ottobit away!

Ottobit Jr. takes everything that made the original Meris Ottobit 500-series unit such an innovative studio tool and crams it down into a rugged and roadworthy pedal suited for any rig, be it guitar, bass or synth. Basically, if you have a creative bone in your body and you love designing crazy and unique sounds unlike anything else, then the Ottobit Jr is for you!

Ottobit Jr. sports a fuzzy bitcrusher with variable sample rate, triggered stutter effects, a multi-mode sequencer module and a mind-blowing low-pass filter that sounds just as good as any analog synth filter out there. All of this is syncable and controllable via tap-tempo, expression and/or midi. But most important of all, Ottobit Jr. always stays super reactive to your playing, seeing you jump from fiery fuzz tones to classic arcade bleeps and bloops, only to end up in a barrage of 6-step sequencing and glitchy stutter effects without breaking a sweat and without ever sounding unmusical.

The Meris Ottobit Jr. is built to Meris’ boutique standards in Los Angeles, California, USA. It features an analogue signal path and 24-bit AD/DA with 32-bit floating point DSP to ensure crystal clear sounds with loads of headroom.

Features:

  • Variable Sample Rate and Bit Crushing
  • Vintage Synth inspired Low-Pass Filter
  • Triggered Stutter Effects
  • Sequencer module for Pitch, Filter or Decimation pattern sequencing
  • Tap Tempo for Sequencer and Stutter
  • Stereo input and output
  • Switchable input/output headroom level for Guitar, Synthesizer or Line levels
  • Expression pedal control over all parameters simultaneously
  • Presets available via external 4-Preset switch or MIDI
  • MIDI in/out over TRS via the EXP jack
  • Remote Tap Tempo Switch capable via the EXP jack
  • Premium and hi end analog signal path
  • Designed and Built in Los Angeles, California U.S.A.



Specs

Knobs

Sample Rate
Changes the sample rate from 48 Hz to 48 kHz. Alt Function: Step 1 First step of the sequencer
Filter
Changes the cutoff frequency of custom filter. Alt Function: Step 2 Second step of the sequencer
Bits
Changes the bit depth from 1 bit to 24 bits. Alt Function: Step 3 Third step of the sequencer
Stutter
Changes the play speed and length of the stutter. Alt Function: Step 4 Fourth step of the sequencer
Sequencer Play Mode
Sets Sequencer to Play Once, Play Twice, Play 4 Times, Play 8 Times, or Play Continuously. Alt Function: Step 5 Fifth step of the sequencer
Sequencer Multiply
Sets the sequencer speed as a multiple of the tap tempo. Alt Function: Step 6 Sixth step of the sequencer

Toggle switches

Tap LED / Alt Function Switch
Blinks at tap tempo rate. Alt Functions are only accessible when ALT (HOLD) switch is held.
Bypass LED / Sequencer Type Switch
Switch LED Indicates bypass status. Small LEDs indicate active sequencer type. Both small LEDs OFF indicates sample rate sequencer active.

Switches

Tap Switch
Sets the speed and the timing of the Sequencer and the Stutter. Hold to freeze the Stutter Buffer.
Bypass
Processes signal when LED is ON, passes dry signal entirely in analog (buffered or relay) when OFF.

Performance

Conversion
Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
Bypass
Selectable True Bypass (Relay) or Analog Buffered Bypass

Dimensions

Dim
10.8cm x 11.4cm x 5cm
Weight
0.41 kg

Power

Power
9V DC center-negative, 150mA, 2.1mm jack
