Iso-Brick Power Supply
The Iso-Brick Power Supply is small and light with tons of quiet, noise-free DC power on tap ready to run a wide range of pedal types without crowding or weighing down your pedalboard.

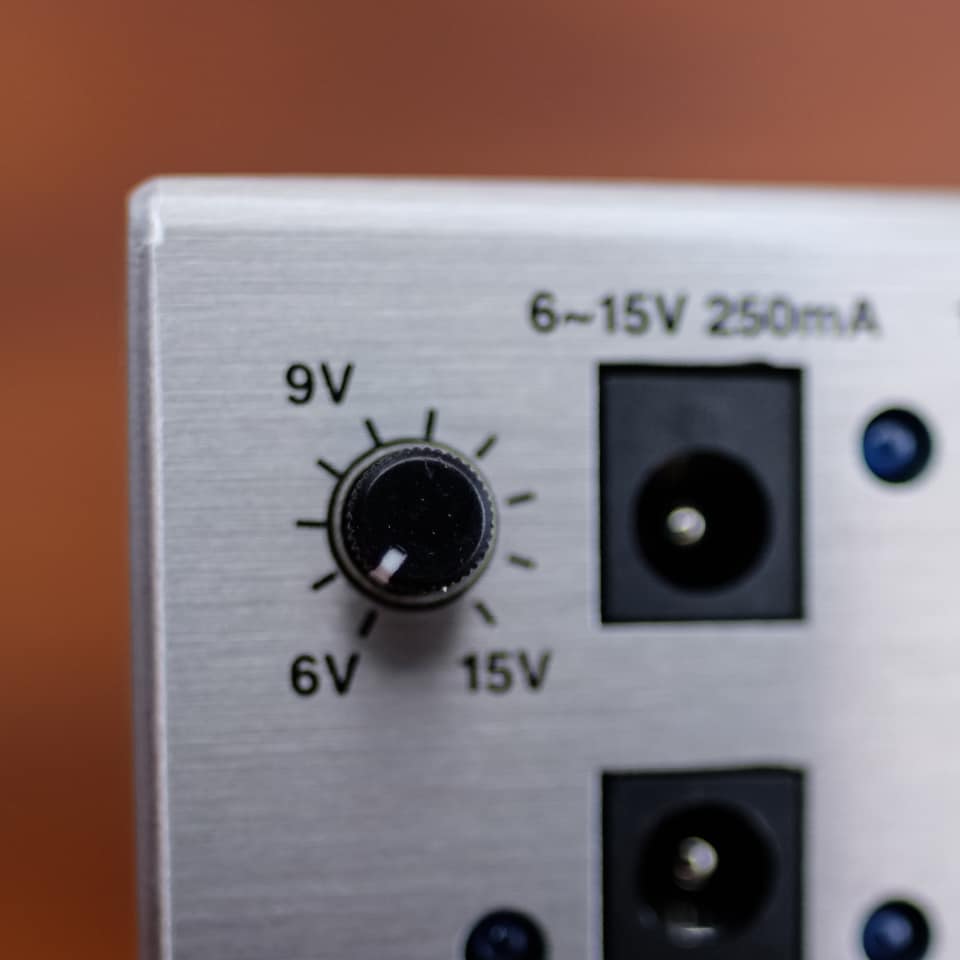

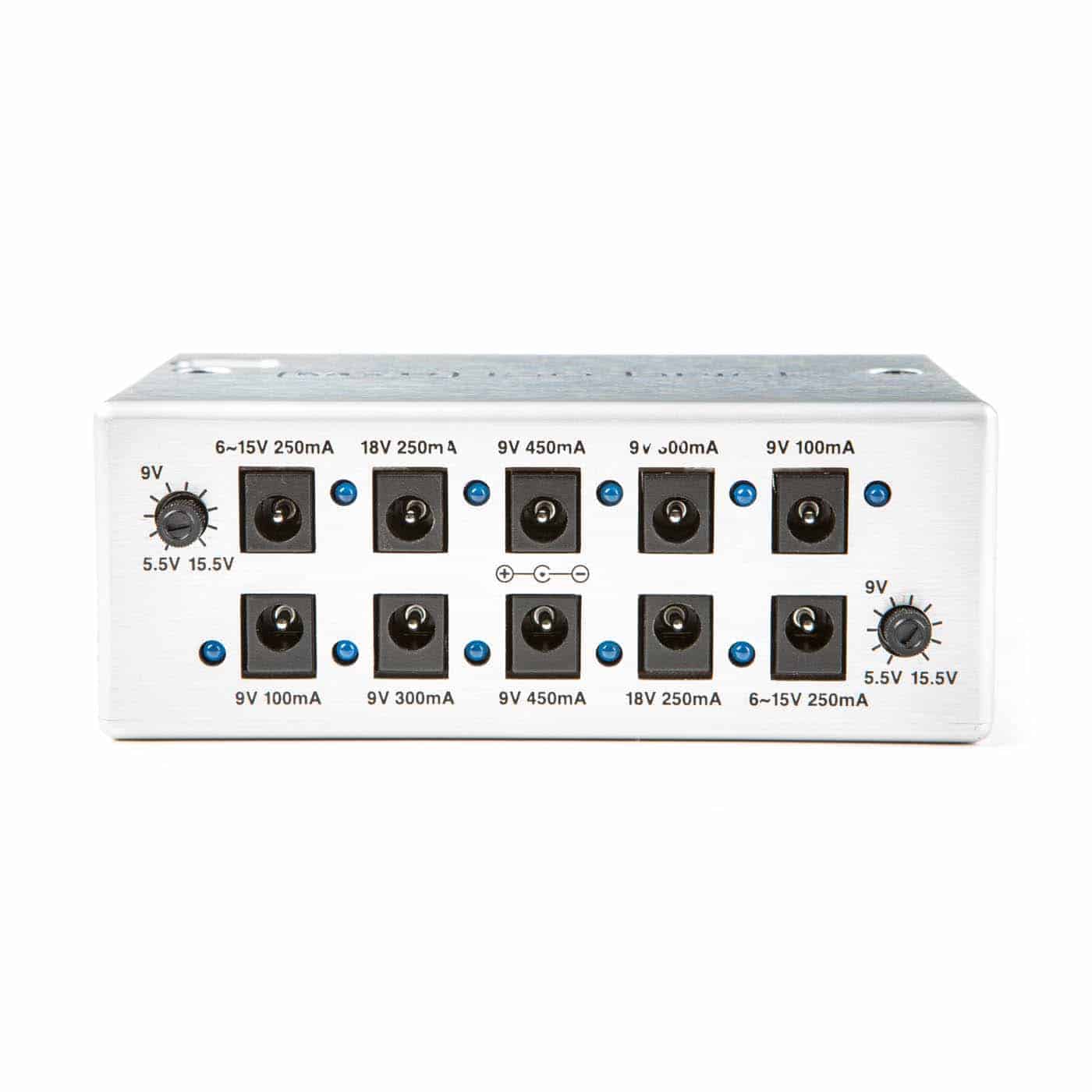

Each of the Iso-Brick Power Supply’s 10 outputs is fully isolated, eliminating gig-ending ground loop noise. Whether analog or digital, positive or negative ground, this power box has you covered. The MXR team broke down these 10 outputs to accommodate a variety of voltage and current requirements: two 9V outputs at 100mA, two 9V outputs at 300mA, two 9V outputs at 450mA, two 18V outputs at 250mA, and two variable outputs adjustable from 6V to 15V at 250mA. The two variable outputs can be used to emulate voltage ?sag,?a drained battery effect sought by many vintage tonechasers.
On top of all that, the Iso-Brick Power Supply comes in a small, lightweight housing that’s built like a tank. Features power on/off and connection status LEDs. Put this little box on your pedalboard to make sure it runs reliably and quietly gig after gig.
This power supply is light and pedalboard-friendly with ten fully isolated outputs ranging from 9V to 18V-including two variable 6V-15V outputs-and special noise-reduction circuitry for quiet operation.
Each output features a blue LED.
When lit, this LED indicates a
good connection. If short-circuited
or overloaded, this LED will
turn off.

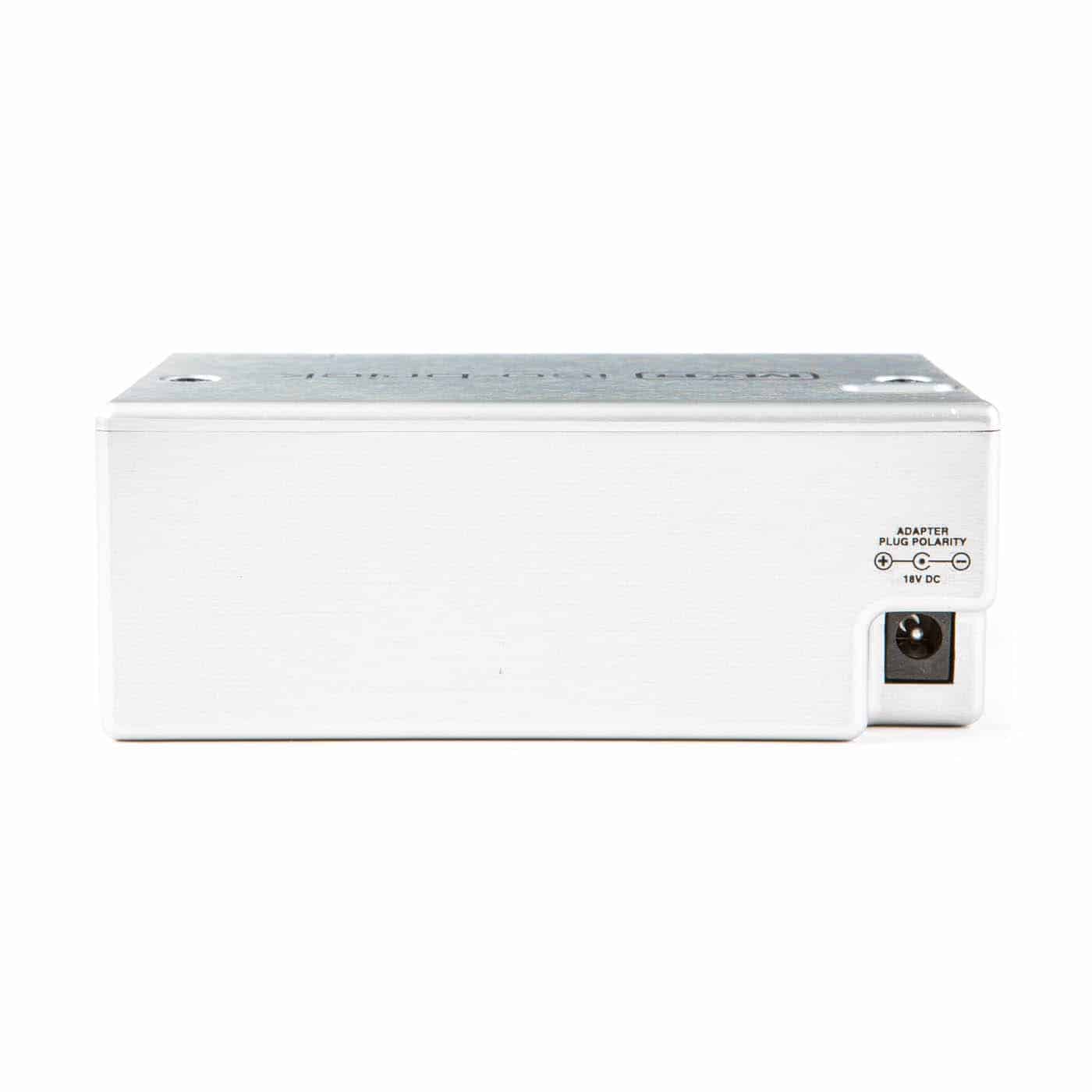

The Iso-Brick Power Supply
requires an 18V regulated power
supply rated at 2000 mA, with
5.5mm x 2.1mm positive barrel,
negative center plug. The included
power adapter can utilize a wide
range of wall power, from 100–240V
at 47–63Hz. Comes with switchable
US/Japan, UK, EU, and
Australian plugs
Included cables use industry
standard 5.5mm x 2.1mm positive
barrel, negative center
polarity plugs.
Specs
Outputs
- 9V
- Two 9V outputs at 100mA Two 9V outputs at 300mA Two 9V outputs at 450mA
- 18V
- Two 18V outputs at 250mA,
- Variable Outputs
- Two variable outputs from 6V to 15V at 250mA
Power
- Power
- 18V @ 2 Amps Regulated supply (positive barrel negative center 5.5mm x 2.1mm plug)
