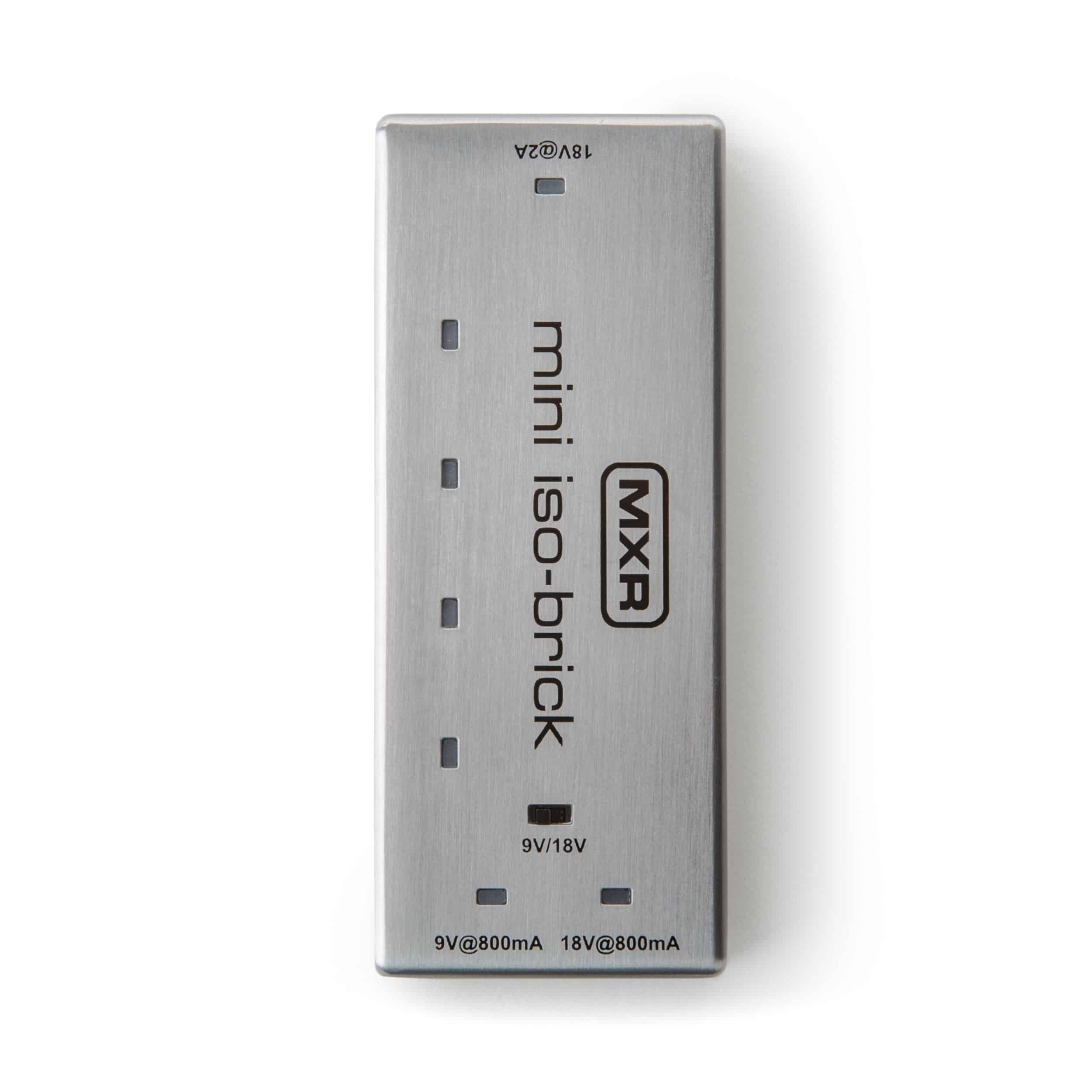

MXR Mini Iso Power supply M239

MXR Mini ISO-Brick

$ 107.80excl. VAT

Mini Iso-Brick Power Supply

The Mini Iso-Brick Power Supply supplies quiet, noise-free DC power to a wide range of pedal types while taking up less space than a candy bar. Whether you need a space-saving solution for your downsized travel board or you just need to power a small, carefully curated selection of tried-and-true staples, this little box has what you need.

First, let’s talk outputs. The Mini Iso-Brick Power Supply has five, and each is fully isolated to eliminate obnoxious, gig-ending ground loop noise. Four of the outputs supply 9 volts of power at 300mA, while a fifth can be set to provide either 9 volts or 18 volts at 800mA depending on your needs. With a generous amount of current on tap and the ability to handle both negative and positive grounds, these outputs will accommodate almost any pedal, analog or digital.

And don’t let the five outputs restrict you—if you need to add an extra pedal, the Mini Iso-Brick Power Supply has you covered. It comes with a splitter cable that can be used to connect two pedals to a single output, provided they require the same voltage, and you don’t exceed the output’s current rating. You can do this with all of the outputs simultaneously—just purchase the extra cables to do so.

Finally, troubleshooting can be a hassle on dark stages, so the Mini Iso-Brick Power Supply comes equipped with LEDs to let you know that all your connections are solid. Combine that with a lightweight housing that’s built like a tank, and you can step on stage with the confidence that your pedalboard will stay powered from gig to gig.

Specs

Outputs

9V
M239’s four 9V outputs can handle up to 300mA each. All outputs may be used simultaneously for a total power output of 17.1 watts. The M239’s foldback current limiting circuit (FBCL) provides ultimate protection against power shorts and overloads. Even at full load, the M239 operates coolly and quietly as a fully regulated power supply
18V
M239’s 9V/18V output can handle up to 800mA.

Power

Power
All outputs may be used simultaneously for a total power output of 17.1 watts. The M239’s foldback current limiting circuit (FBCL) provides ultimate protection against power shorts and overloads. Even at full load, the M239 operates coolly and quietly as a fully regulated power supply
