Darkglass Vintage Deluxe

$ 291.55excl. VAT

Vintage Deluxe

The Darkglass Vintage Deluxe features the warm, tube-like tones of the Microtubes Vintage and adds a 4-band active EQ, parallel output and balanced line driver. It delivers the natural dynamic response and organic compression of classic tube amps and tape machines, fitting four decades of legendary tones into a package that will fit in your gig bag.

Specs

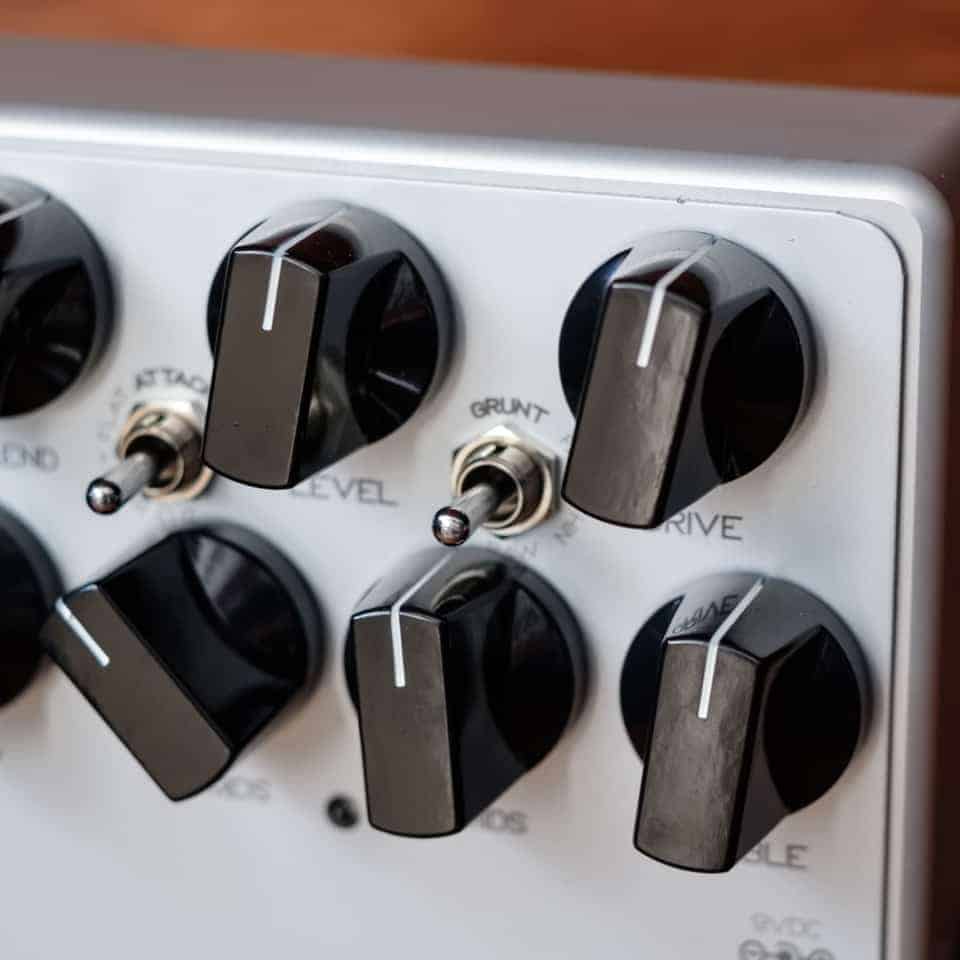

Knobs

Blend
Mixes the clean and processed signals. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine mix tuning.
Level
Sets the volume of the overdriven signal.
Drive
Sets the amount of saturation in the overdriven signal.
Bass
+-12dB @ 100Hz
Low Mid
+-12dB @ 500Hz
Hi Mid
+-12dB @ 1.5kHz
Treble
+-12dB @ 5kHz

Toggle switches

Attack
Sets the amount of treble content to saturate: The "Boost" setting emphasizes the treble content extra clarity and presence. The "Flat" position leaves this register untouched while the "Cut" position will reduce the amount of high frequencies being saturated.This new addition helps to keep the treble portion of the signal under control, specially useful when playing with new strings and/or cabinets with tweeters!
Grunt
Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.

Ground Lift

Ground Lift
Yes

Outputs

Parrallel Output
A passthrough for your input signal, useful for parallel processing.
Instrument Output
Instrument Output for your amp
Direct Output
A balanced version of the ¼” output, useful for running into PA’s or studio mixing consoles.

Dimensions

Dimensions
12×10.7 cm (4.72×4.21 in)

Power

Power
The Vintage Deluxe has a current draw of 30mA. Only use a regulated 9V DC adapter with a center-negative plug. Due to ecological reasons it does not accept batteries. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
