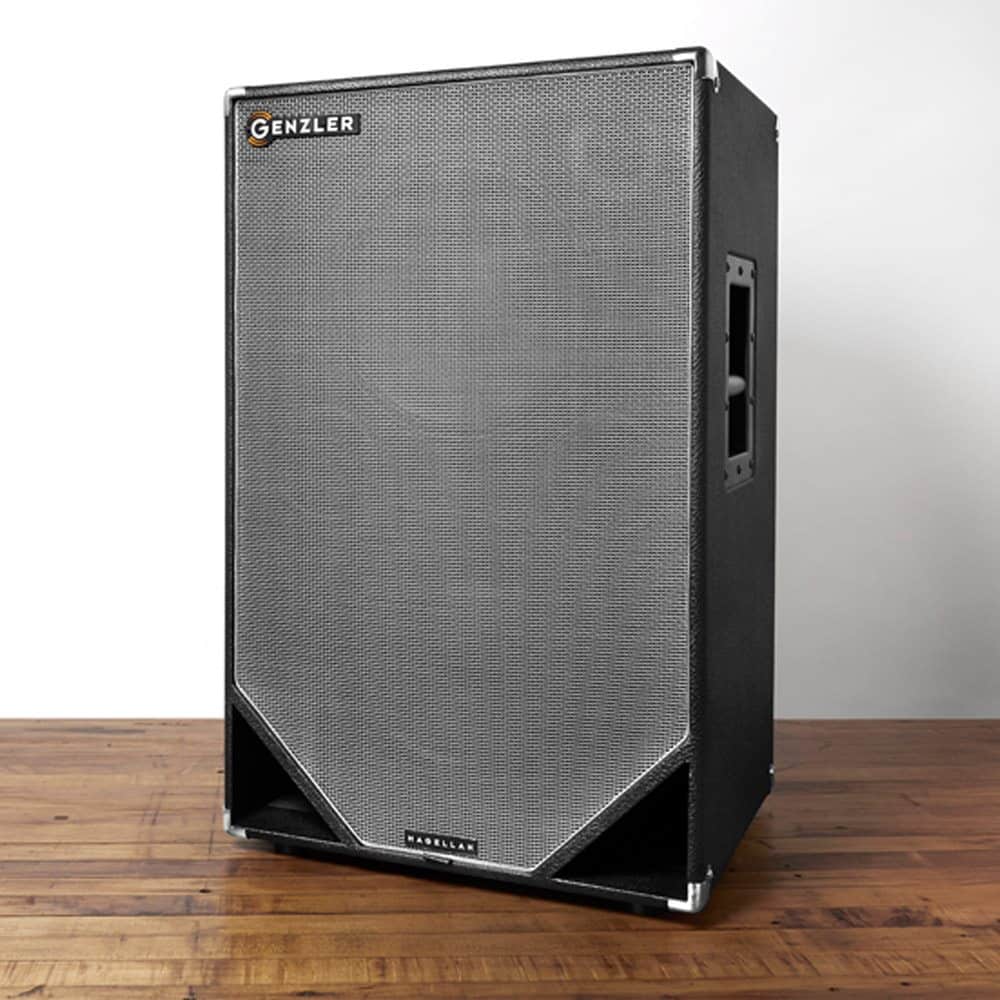

Genzler MAGELLAN-212T

Genzler Magellan 212T

SOLD

Out of stock

This new series shares a heritage to many previous Jeff Genzler designs.  These light-weight cabinet designs constructed from 12mm and 15mm Baltic Birch plywood deliver powerful, full-body response with a modern, yet classic styling.  The cabinets are wrapped in a heavy-duty black textured vinyl with a complimentary woven wire, silver and black grille cloth and silver metallic piping.  The distinctive front triangular ports provide an optimum porting design as well as structural strength in the corners of the cabinet.  All of this sets the Magellan series apart from standard black boxes and defines that this is the pinnacle of professional bass amplification equipment.

The MG-212T is a vertically stacked design yet still compact for a powerful 2 x 12” and tweeter combination.  The close configuration of the dual 12” drivers provides “tight-fisted” powerful projection of the low and mid frequencies.  The depth and roundness of the low end blends seamlessly with the midrange clarity of these premium loudspeakers.  With our proprietary compression tweeter the top end could be described as much more “polite” (smoother) than your average configuration of this type.   Overall, this cabinet is a “compact tower” of depth, clarity and authority.

Specs

Performance

Speaker
Two premium Faital® neodymium 12″ cast frame loudspeakers utilizing a unique dual-wound voice coil design for increased power handling and efficiency.
Tweeter
One proprietary compact 1″ bullet tweeter with Ferro Fluid infusion in the voice coil gap for higher power rating and smoother high frequency response.
Power Handling
700 Watt
Frequency Response
33-14KHz
Sensitivity 1W/1M
100 dB
Nominal Impedance
4 ohm
Crossover Frequency
4.7K Hz
Crossover
Custom designed 12dB/octave slope with 100W L-Pad level control.
Output
One Speakon® NL-2 connector and 2 – ¼” sealed jacks; to reduce rear cabinet air loss and noise.

Measurements

Dimensions
78cm x 48.2cm x 40.6cm
Weight
24.4 Kg

Cabinet material

Cabinet Finish
Heavy-duty textured black vinyl.
Corners And Bar
Black metal corners and top-mounted, recessed bar handle.
Grill
Custom, curved grille with a unique center “pleat” to protect the array column.
Feet
Large rubber feet.
